15 ~ 30 Tons / Hour Environmental Protection Type Water-soluble Fertilizer ( Drip Irrigation, Flushing Fertilization ) Automatic Complete Equipment / Production Line

Products
15 ~ 30 Tons / Hour Environmental Protection Type Water-soluble Fertilizer ( Drip Irrigation, Flushing Fertilization ) Automatic Complete Equipment / Production Line
15 ~ 30 Tons / Hour Environmental Protection Type Water-soluble Fertilizer ( Drip Irrigation, Flushing Fertilization ) Automatic Complete Equipment / Production Line
15 ~ 30 Tons / Hour Environmental Protection Type Water-soluble Fertilizer ( Drip Irrigation, Flushing Fertilization ) Automatic Complete Equipment / Production Line
15 ~ 30 Tons / Hour Environmental Protection Type Water-soluble Fertilizer ( Drip Irrigation, Flushing Fertilization ) Automatic Complete Equipment / Production Line
15 ~ 30 Tons / Hour Environmental Protection Type Water-soluble Fertilizer ( Drip Irrigation, Flushing Fertilization ) Automatic Complete Equipment / Production Line
Description :

Bring crushing, ingredients, mixing, packaging in one, ingredients, mixed, and packaging are automated;

3 ~ 8 materials, mix uniformly after automatic ingredients specified in the formula specified     in the formula, automatically measure, fill, and pack it according to the quantitative specifi-    cations;

The semi -automatic filling and seal of the artificial baggage, the seal is tight and the seal is     good;

The production line process process design, equipment structure design, and selection of    materials meet the requirements of corrosion corrosion. The equipment can facilitate clean-    ing and cleaning. All contact materials are stainless steel;

Because some materials contain crystalline water, easy to suck tide, high temperature and     liquefaction; the equipment and mixture of this production line are fast, the production   process is less contact with air, and it will not absorb water and return to the tide;

The measurement is accurate, the accuracy of the ingredients is ± 0.5%, and the mix is even;

The ingredient system can store multiple formulas, which is convenient to modify the formu-     la; it can achieve 5kg/bag, 5 ~ 10kg/bag, 10kg/bag, 20 ~ 50kg/bag of ingredients and pack-   aging;

The equipment layout is compact, low energy consumption, and energy saving;

Easy operation, maintenance, stable performance, low failure rate, reliable operation;

The flow of people, smooth logistics, high degree of automation, and reducing artificially.

Product Description:

The bagged powdery raw materials are manually moved to the feeding port

Technical Parameters

Packaging Specifications

5kg ~ 50kg / bag

Production capacity

15 ~ 30 tons / hour   Calculated according to 25kg per bag

Types of ingredients

3 ~ 8 types

Dosing accuracy

≤±0.5%

Packaging accuracy

Each bag≤±0.2%

Power consumption per ton of fertilizer

3 ~ 5 degrees / ton

Process operators

 4 ~ 5 people Except raw material and finished product delivery personnel

Packaging specifications Production capacity Packaging capacity: Large-capacity equipment   can be customized according to the actual situation of users

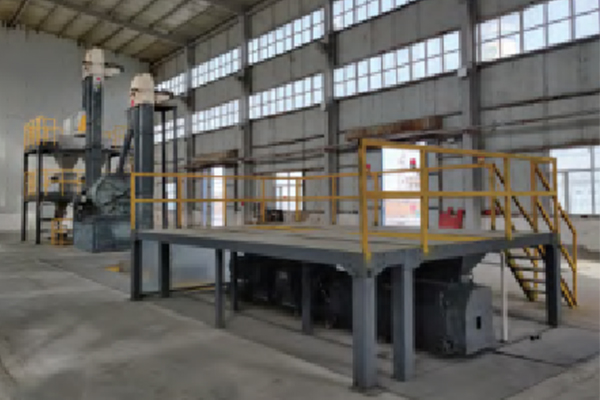

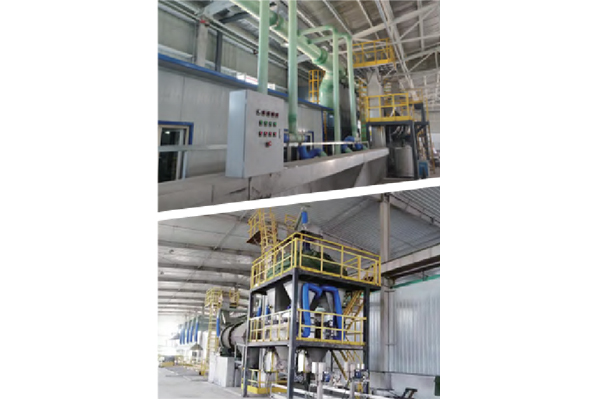

Finished product pictures
